MONITECH

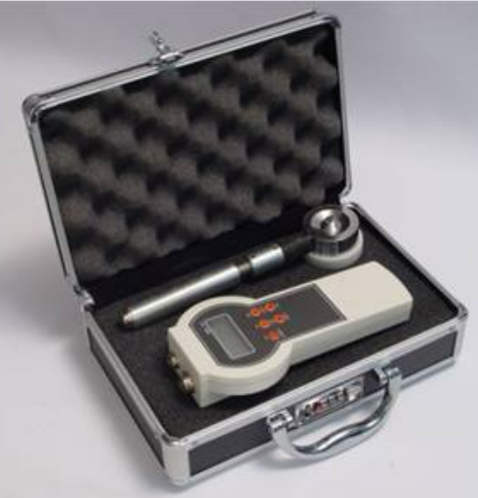

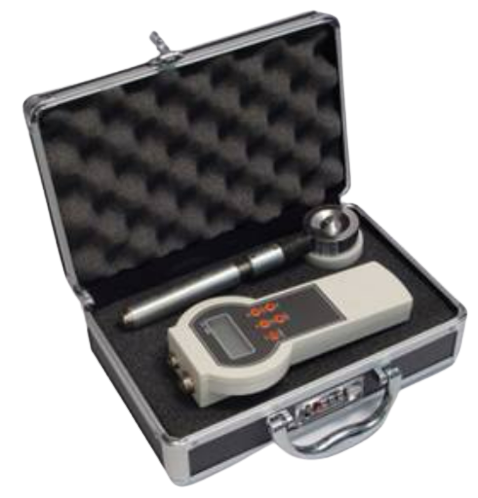

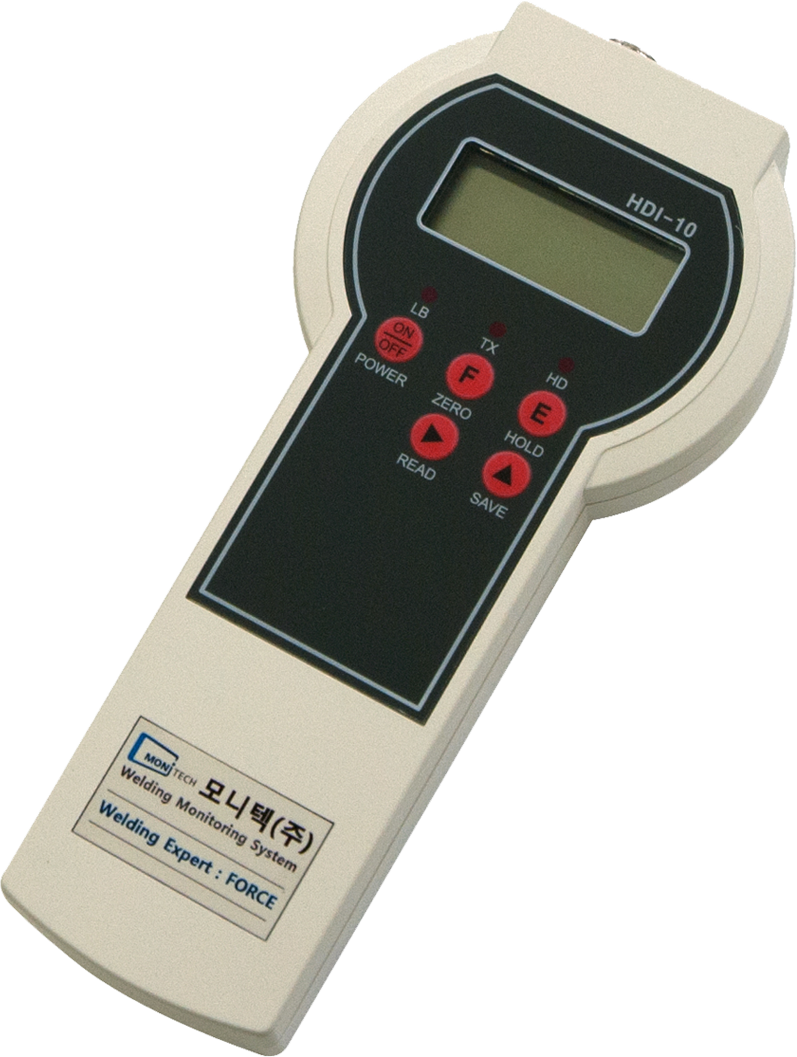

Pressure measuring device

Model WEF - 1000

System overview
- Essential equipment for managing pressure in the resistance welding production line for manufacturing automotive components and electronic products.
- Can be used for micro-spot welding (2nd battery, PCM module welding) with a maximum load of 1-2 tons.
- (Importance of pressure) The pressure between the electrodes is necessary during welding to ensure the passage area for current flow and directly influences nugget formation.

Video

Key functionsand features

  • Compact and lightweight for easy portability.
  • Easy to use with simple instructions.
  • Instantaneous value and holding function according to pressure conversion.
  • Alarm function based on setting upper limit value during measurement.
  • Automatic reset function when measuring the maximum value.
  • Perfect noise countermeasure in servo health.

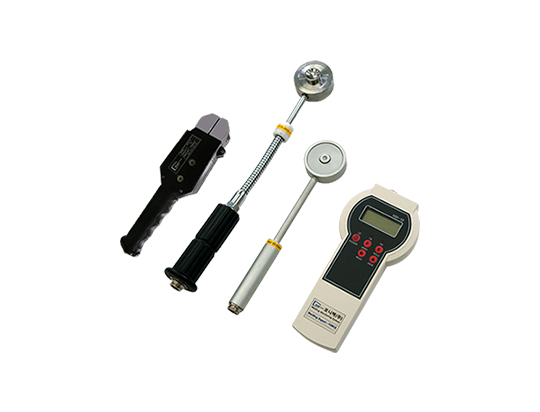

Examplesof measuring device applications
